HOME >> PRODUCT >> Palisade Fence>>D Section Palisade Fence

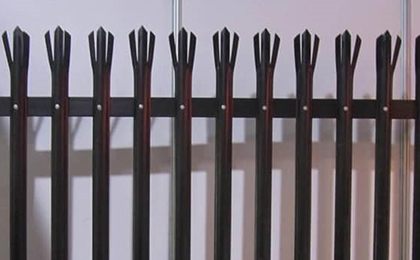

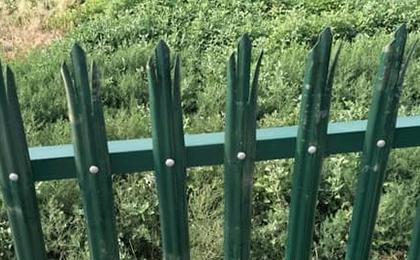

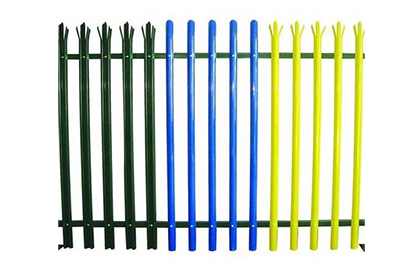

D Section Palisade Fence

D Section Palisade FenceD Section Palisade Fence
D Section Palisade FenceD Section Palisade Fence
D Section Palisade FenceD Section Palisade Fence
D Section Palisade FenceD Section Palisade Fence

Palisade fences are strong, robust, steel pale, post and rail fence systems which rake to sloping ground. They are a rigid bolted fence system with anti-tamper shear nuts.

Post:2400 High fence – 100×45TFB/3000 High Fence – 150 UB 14.0

Rail:50x50x6 EA

Fish Plate:40×8140 Long

Rail Fixings:M12x30 Cuphead Bolt and Shear Nut

Pale Fixings:M8x25 T Bolt and Shear Nut or Stainless Steel Huck Pin and Collar

Mid Bay Support:M12x500 Threaded Rod and 2 x Nuts

Introduction:

Palisade is a straight pale design, provides increased scaling difficulty with an attack side outwardly curved pale top.

Palisade fences is Anti-climb profile,tamper resistant fixings,multi-directional triple spiked top.

Palisade fences is Optional colour choice,can be integrated with electric fencing ,installation on level or sloping sites ,Corrosive resistant.
